Appearance

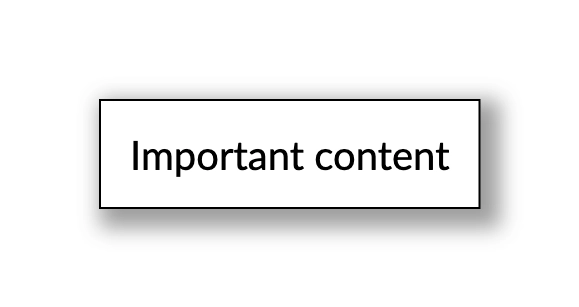

Shadow
Shadows can enhance the visual depth and separation of elements in a document.
c#
container
.Border(1, Colors.Black)
.Shadow(new BoxShadowStyle
{
Color = Colors.Grey.Medium,
Blur = 5,
Spread = 5,
OffsetX = 5,
OffsetY = 5
})
.Background(Colors.White)
.Padding(15)
.Text("Important content");

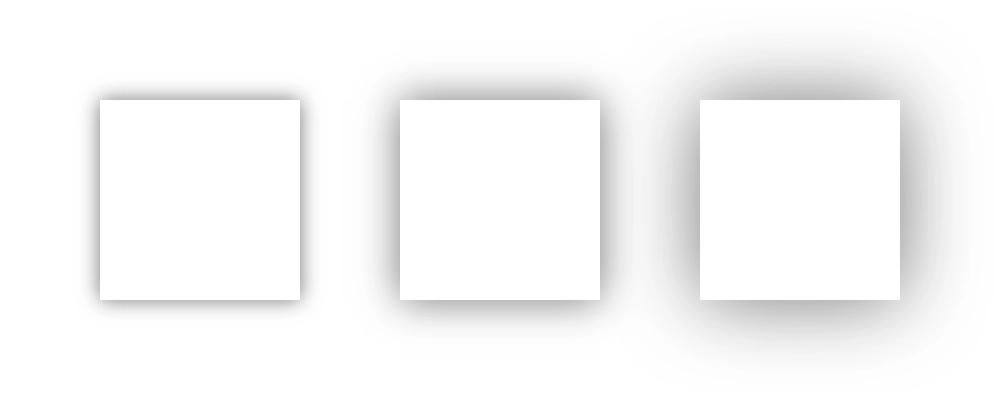

Blur
Gets or sets the blur radius of the shadow in pixels. Higher values produce a more diffused shadow with softer edges.
A value of 0 results in a sharp, unblurred shadow.
TIP
Values different from 0 may significantly impact performance and enlarge the output file size. Use with caution, especially in large documents or when rendering complex shadows.
c#
.Row(row =>
{
row.Spacing(50);
foreach (var blur in new[] { 5, 10, 20 })
{
row.ConstantItem(100)
.AspectRatio(1)
.Shadow(new BoxShadowStyle
{
Color = Colors.Grey.Darken1,
Blur = blur
})
.Background(Colors.White);
}
});

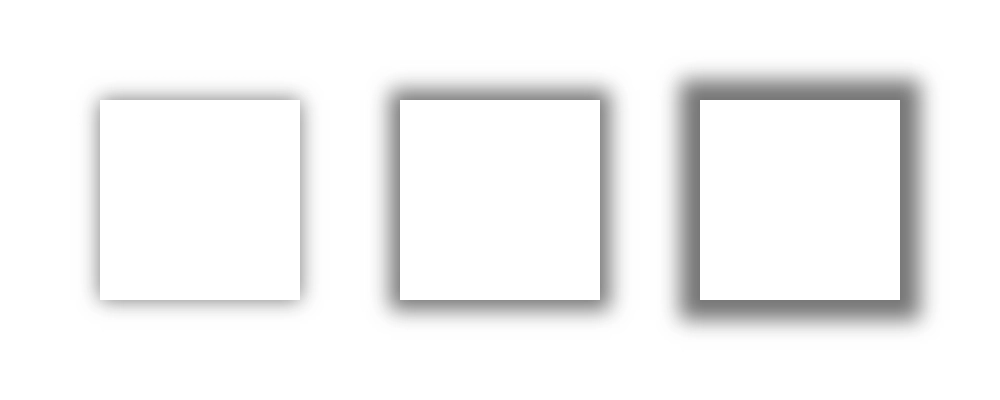

Spread
Gets or sets the spread radius of the shadow in pixels.
Positive values cause the shadow to expand, negative values cause it to contract.
c#
.Row(row =>
{
row.Spacing(50);
foreach (var spread in new[] { 0, 5, 10 })
{
row.ConstantItem(100)
.AspectRatio(1)
.Shadow(new BoxShadowStyle
{
Color = Colors.Grey.Darken1,
Blur = 5,
Spread = spread
})
.Background(Colors.White);
}
});

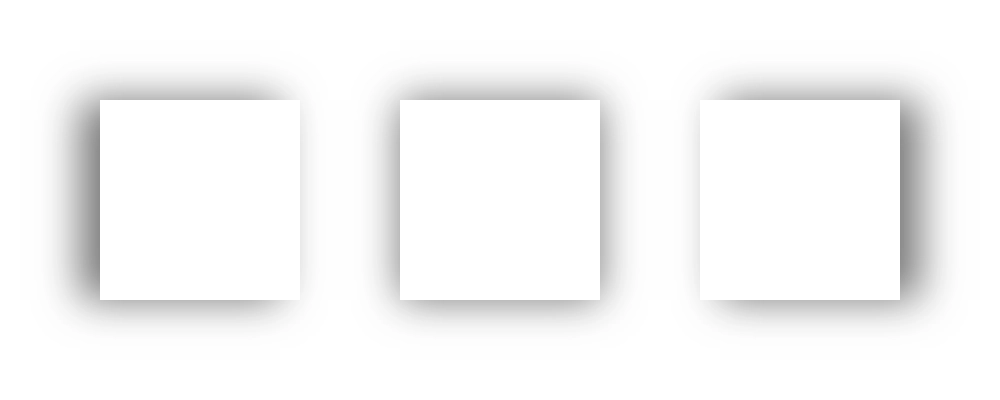

Offset X
Gets or sets the horizontal offset of the shadow in pixels.
Positive values move the shadow to the right, negative values move it to the left.
c#
.Row(row =>
{
row.Spacing(50);
foreach (var offsetX in new[] { -10, 0, 10 })
{
row.ConstantItem(100)
.AspectRatio(1)
.Shadow(new BoxShadowStyle
{
Color = Colors.Grey.Darken1,
Blur = 10,
OffsetX = offsetX
})
.Background(Colors.White);
}
});

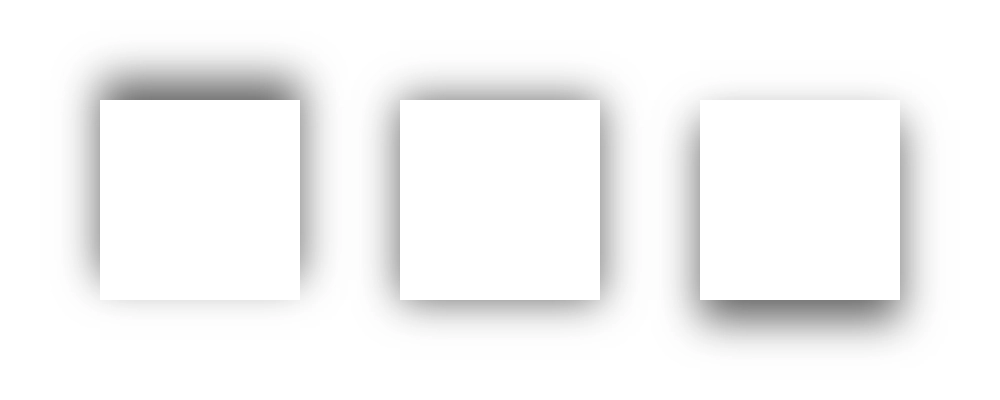

Offset Y
Gets or sets the vertical offset of the shadow in pixels.
Positive values move the shadow downward, negative values move it upward.
c#
.Row(row =>
{
row.Spacing(50);
foreach (var offsetY in new[] { -10, 0, 10 })
{
row.ConstantItem(100)
.AspectRatio(1)
.Shadow(new BoxShadowStyle
{
Color = Colors.Grey.Darken2,
Blur = 10,
OffsetY = offsetY
})
.Background(Colors.White);
}
});

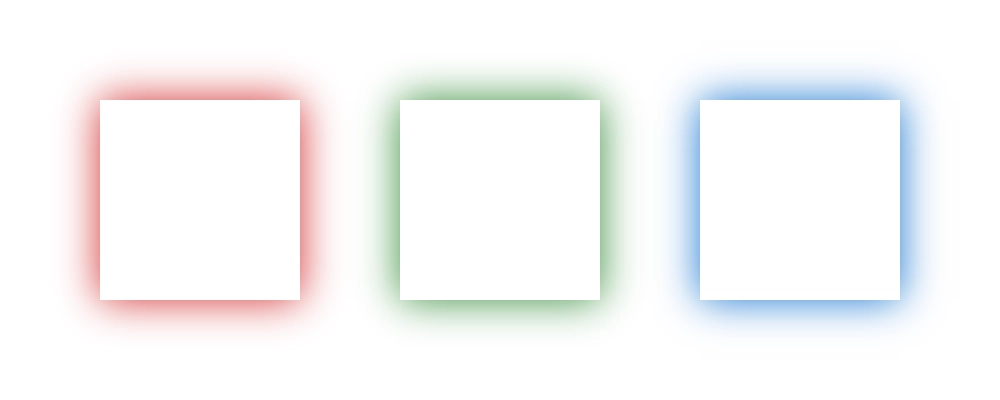

Color
Gets or sets the color of the shadow.
c#
.Row(row =>
{
row.Spacing(50);
var colors = new[]
{
Colors.Red.Darken2,
Colors.Green.Darken2,
Colors.Blue.Darken2
};
foreach (var color in colors)
{
row.ConstantItem(100)
.AspectRatio(1)
.Shadow(new BoxShadowStyle
{
Color = color,
Blur = 10
})
.Background(Colors.White);
}
});

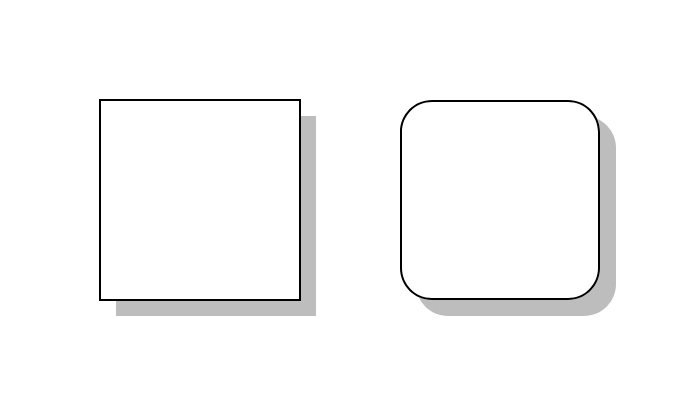

Without Blur (Fast)
Shadows can be applied without any blur effect for a sharper appearance.
This approach is faster and results in significantly smaller file sizes, making it suitable for performance-sensitive applications.
c#
.Row(row =>
{
row.Spacing(50);
row.ConstantItem(100)
.AspectRatio(1)
.Shadow(new BoxShadowStyle
{
Color = Colors.Grey.Lighten1,
Blur = 0,
OffsetX = 8,
OffsetY = 8
})
.Border(1, Colors.Black)
.Background(Colors.White);
row.ConstantItem(100)
.AspectRatio(1)
.Shadow(new BoxShadowStyle
{
Color = Colors.Grey.Lighten1,
Blur = 0,
OffsetX = 8,
OffsetY = 8
})
.Border(1, Colors.Black)
.CornerRadius(16)
.Background(Colors.White);
});
