Ensure space

Ensures that the container's content occupies at least a specified minimum height on its first page of occurrence.

  • If there is enough space, the content is rendered as usual.
  • However, if a page break is required, this method ensures that a minimum amount of space is available before rendering the content. If the required space is not available, the content is moved to the next page.
  • This rule applies only to the first page where the content appears. If the content spans multiple pages, all subsequent pages are rendered without this restriction.

Example

This method is particularly useful for structured elements like tables, where rendering only a small fragment at the bottom of a page could negatively impact readability. By ensuring a minimum height, you can prevent undesired content fragmentation.

c#
container.Column(column =>
{
    column.Item().Height(400).Background(Colors.Grey.Lighten3);
    column.Item().Height(30);

    column.Item()
        .EnsureSpace(100)
        .Table(table =>
        {
            table.ColumnsDefinition(columns =>
            {
                columns.ConstantColumn(40);
                columns.RelativeColumn();
            });

            foreach (var i in Enumerable.Range(1, 12))
            {
                table.Cell().Text($"{i}.");
                table.Cell().ShowEntire().Text(Placeholders.Sentence());
            }
        });
});

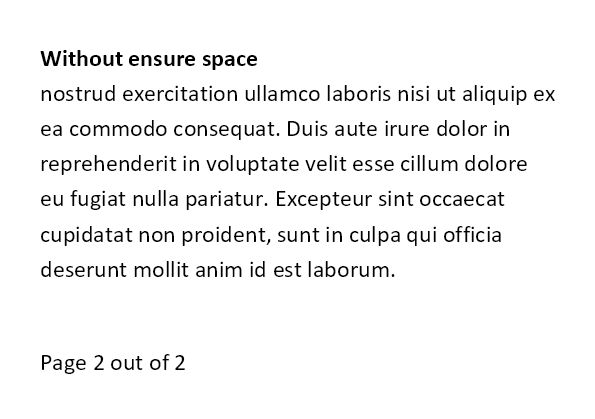

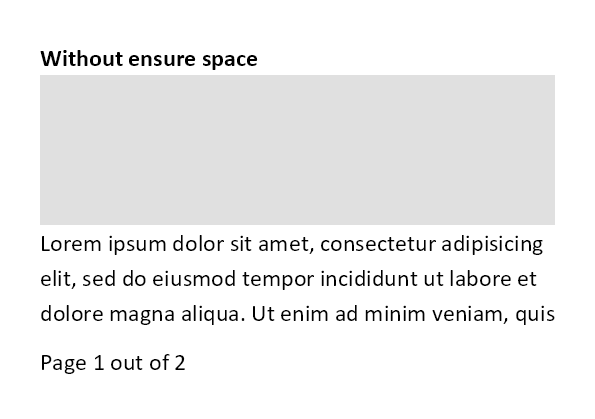

Without EnsureSpace

Unable to display PDF file. Download instead.

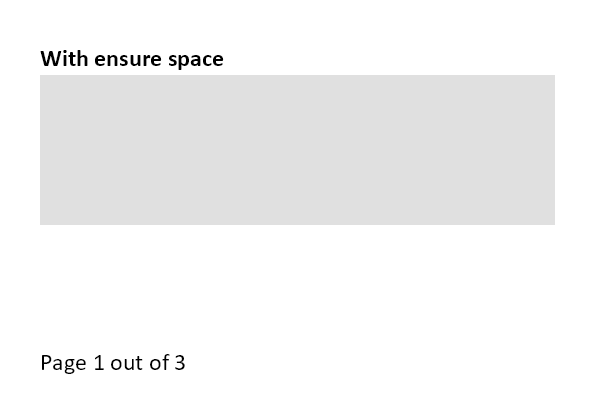

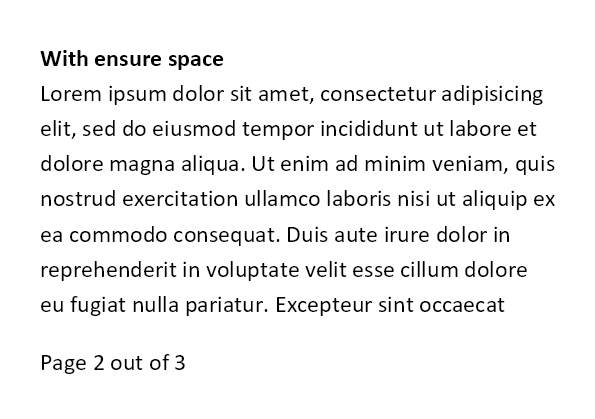

With EnsureSpace

Unable to display PDF file. Download instead.
