Maps

QuestPDF provides seamless integration with Mapbox Static Maps API, allowing you to embed high-quality, customizable maps into your PDF documents. This integration offers a reliable and efficient way to include geographical visualizations in your reports, documents, or any PDF output.

INFO

This section provides examples of how to integrate the Mapbox service with QuestPDF. This service is paid but provides a generous free tier, including commercial usage.

Example

The code below presents a simple helper class that fetches a map image based on the provided coordinates, zoom level, and dimensions.

static class MapboxStaticMapRenderer
{
    private const string MapboxBaseUrl = "https://api.mapbox.com/styles/v1/mapbox/streets-v12/static";
    private const string AccessToken = "pk.eyJ1IjoibWFyY2luLXppYWJlayIsImEiOiJjbTc5cHZkZTUwNmM4MmxxdGN2cnRxMTBpIn0.8G-_nwFqjjfNQUCmHSOqKw";

    public static async Task<byte[]?> FetchStaticMapAsync(double longitude, double latitude, float zoom, int width, int height)
    {
        var longitudeString = longitude.ToString(System.Globalization.CultureInfo.InvariantCulture);
        var latitudeString = latitude.ToString(System.Globalization.CultureInfo.InvariantCulture);
        var url = $"{MapboxBaseUrl}/{longitudeString},{latitudeString},{zoom},0,0/{width}x{height}@2x?access_token={AccessToken}";

        using var client = new HttpClient();

        try
        {
            var response = await client.GetAsync(url);
            return await response.Content.ReadAsByteArrayAsync();
        }
        catch (Exception ex)
        {
            return null;
        }
    }
}

You can use the helper class implemented above to fetch a map image and embed it in your document.

var map = await MapboxStaticMapRenderer.FetchStaticMapAsync(19.9376052f, 50.0616087f, 10, 500, 400);

Document
    .Create(document =>
    {
        document.Page(page =>
        {
            page.ContinuousSize(550);
            page.Margin(25);

            page.Content()
                .Column(column =>
                {
                    column.Item().Text("Map of Kraków").FontSize(20).Bold();
                    column.Item().Text("Capital of Lesser Poland Voivodeship").FontSize(16).Light();
                    column.Item().Height(15);

                    column.Item()
                        .Background(Colors.Grey.Lighten3)
                        .ShowIf(map != null)
                        .Image(map);
                });
        });
    })
    .GeneratePdf("map.pdf");

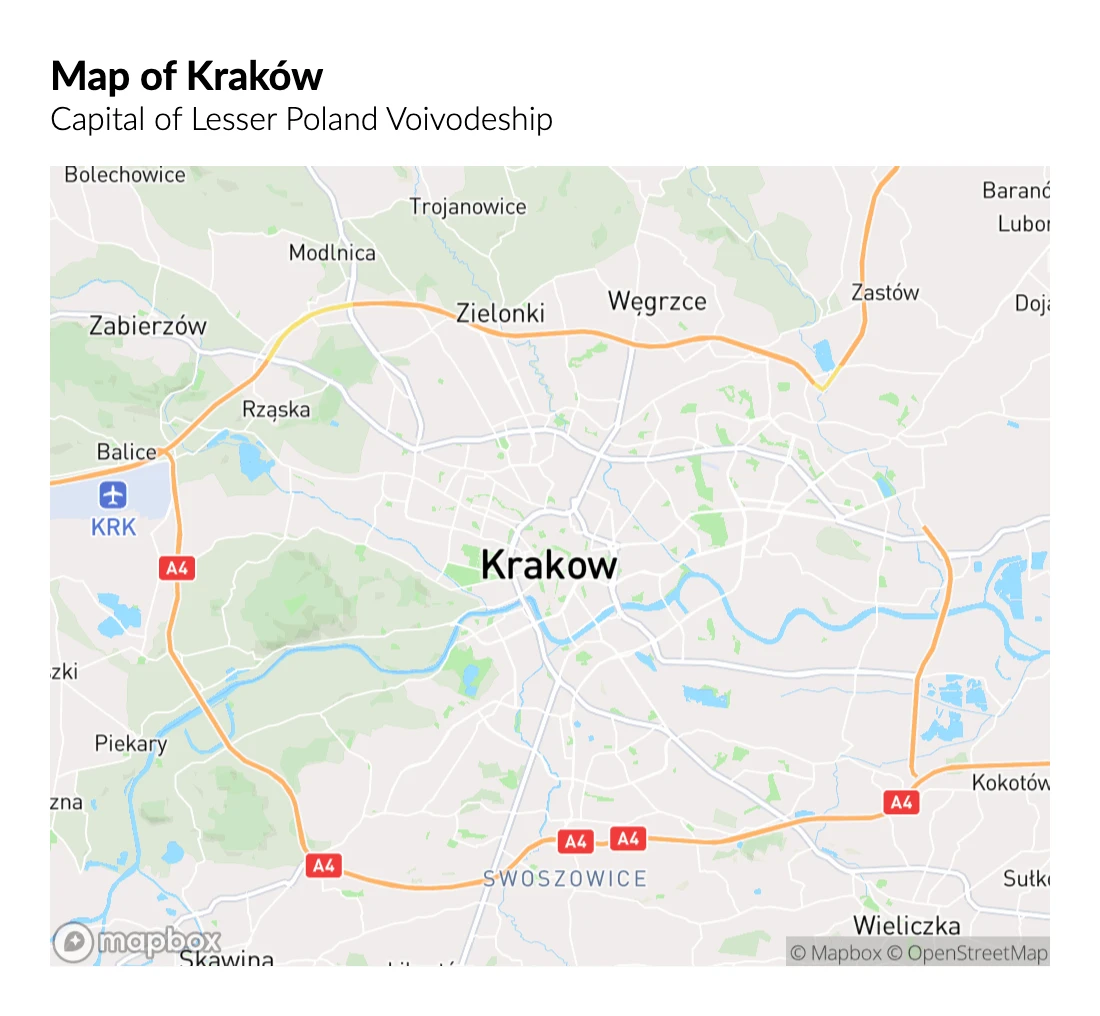

example

WARNING

Always fetch the map before starting PDF generation. The map retrieval is an asynchronous operation and should not be performed during document generation.
