Inlined

The Inlined component arranges elements sequentially in a line, automatically wrapping to the next line when needed. This layout is particularly useful when you need to display a collection of elements horizontally with consistent spacing and alignment options.

Helper method

The following helper method generates sample blocks with random sizes and colors to demonstrate the Inlined component's capabilities:

void RandomBlock(IContainer container)
{
    container
        .Width(Random.Shared.Next(1, 4) * 25)
        .Height(Random.Shared.Next(1, 4) * 25)
        .Border(1)
        .BorderColor(Colors.Grey.Darken2)
        .Background(Placeholders.BackgroundColor());
}

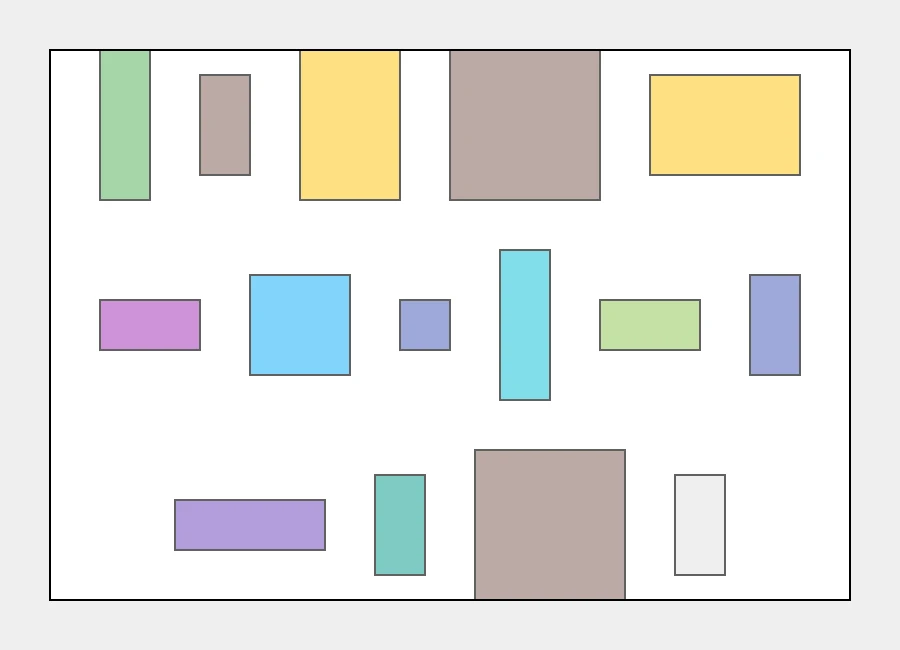

Usage

.Background(Colors.Grey.Lighten3)
.Padding(25)
.Border(1)
.Background(Colors.White)
.Inlined(inlined =>
{
    inlined.Spacing(25);
    inlined.BaselineMiddle();
    inlined.AlignCenter();

    foreach (var _ in Enumerable.Range(0, 15))
        inlined.Item().Element(RandomBlock);
});

Spacing

Option	Description
Spacing	Sets the vertical and horizontal gaps between items.
VerticalSpacing	Sets the vertical gaps between items.
HorizontalSpacing	Sets the horizontal gaps between items.

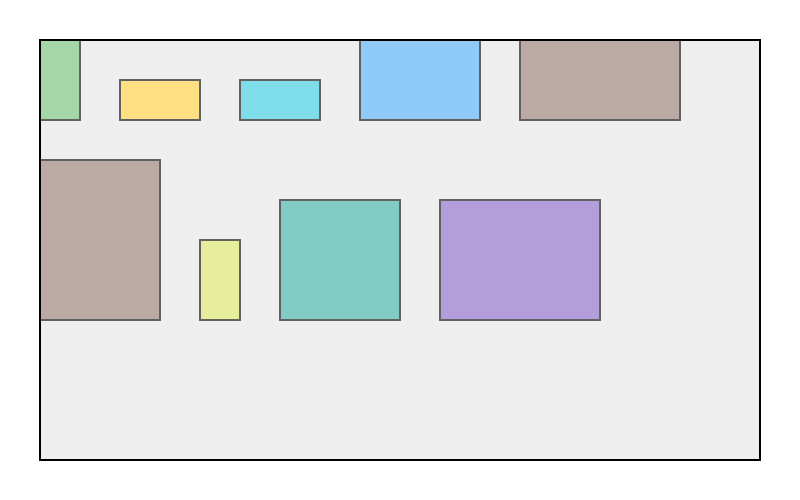

Horizontal alignment

Option	Description
AlignLeft	Aligns items horizontally to the left side.
AlignCenter	Aligns items horizontally to the center.
AlignRight	Aligns items horizontally to the left right.

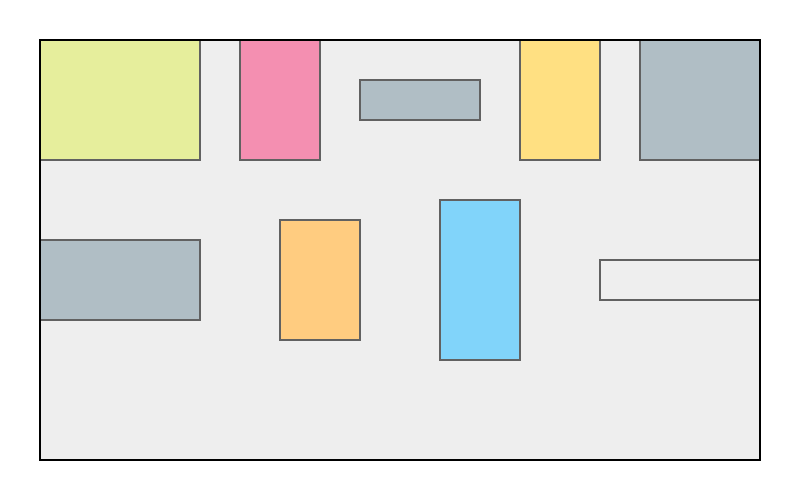

AlignJustify	Distributes items horizontally, ensuring even spacing from edge to edge of the container.

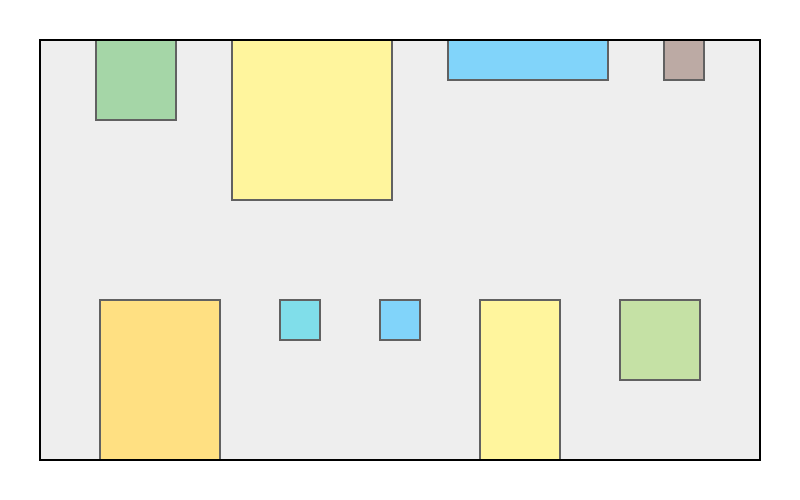

AlignSpaceAround	Spaces items equally in a horizontal arrangement, both between items and at the ends.

Baseline alignment

Option	Description
BaselineTop	Positions items vertically such that their top edges align on a single line.
BaselineMiddle	Positions items to have their centers in a straight horizontal liąne.
BaselineBottom	Positions items vertically such that their bottom edges align on a single line.
