Border

You can use borders to create visual separation between elements in your document. Borders can be applied to any element, including text, images, and containers.

container
    .Border(3, Colors.Blue.Darken4)
    .Background(Colors.Blue.Lighten5)
    .Padding(25)
    .Text(text =>
    {
        text.DefaultTextStyle(x => x.FontColor(Colors.Blue.Darken4).FontSize(16));
        text.Span("TIP: ").Bold();
        text.Span("You can use borders to create visual separation between elements in your document. Borders can be applied to any element, including text, images, and containers.");
    });

Thickness

Method	Description

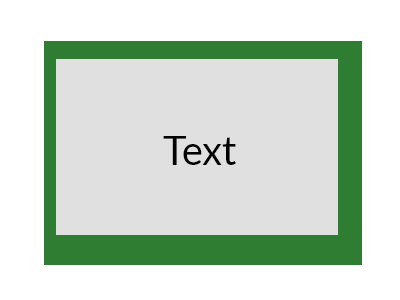

Border	Sets a uniform border (all edges) for its content.
BorderVertical	Sets a vertical border (left and right) for its content.

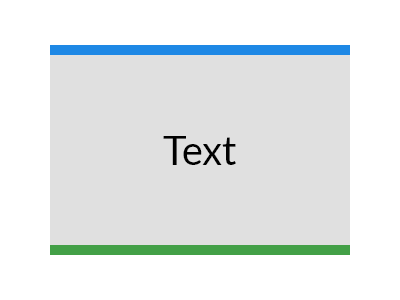

BorderHorizontal	Sets a horizontal border (top and bottom) for its content.
BorderLeft	Sets a border on the left side of its content.
BorderRight	Sets a border on the right side of its content.
BorderTop	Sets a border on the top side of its content.
BorderBottom	Sets a border on the bottom side of its content.

Each method requires a thickness value as a parameter. Optionally, you can specify the unit value (default is Unit.Points).

container.Border(1);
container.Border(1, Unit.Millimeters);

TIP

Learn more about supported units in the Lenght unit types section.

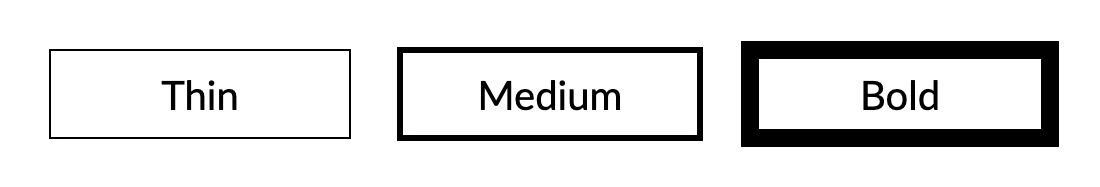

Consistent thickness

.Row(row =>
{
    row.Spacing(25);

    row.RelativeItem()
        .Border(1, Colors.Black)
        .Padding(10)
        .AlignCenter()
        .Text("Thin");

    row.RelativeItem()
        .Border(3, Colors.Black)
        .Padding(10)
        .AlignCenter()
        .Text("Medium");

    row.RelativeItem()
        .Border(9, Colors.Black)
        .Padding(10)
        .AlignCenter()
        .Text("Bold");
});

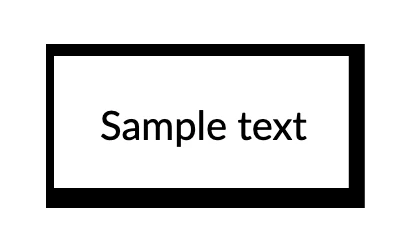

Various thickness

container
    .BorderLeft(4)
    .BorderTop(6)
    .BorderRight(8)
    .BorderBottom(10)
    .Padding(25)
    .Text("Sample text");

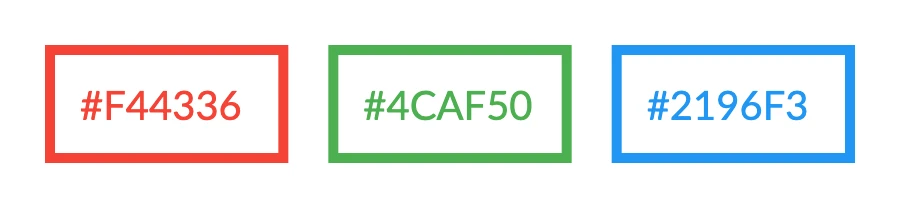

Solid Color

In the vast majority of cases, borders are applied with a solid color.

TIP

Learn more about supported color formats and predefined color palettes in the Colors section.

.Row(row =>
{
    var colors = new[]
    {
        Colors.Red.Medium,
        Colors.Green.Medium,
        Colors.Blue.Medium
    };

    row.Spacing(25);

    foreach (var color in colors)
    {
        row.RelativeItem()
            .Border(5)
            .BorderColor(color)
            .Padding(15)
            .Text(color)
            .FontColor(color);
    }
});

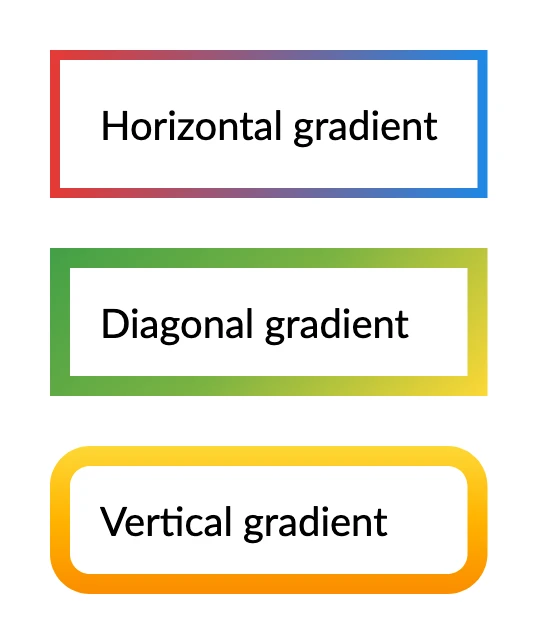

Gradient

Applies a linear gradient background to the border with the specified angle and colors.

The first argument is the angle in degrees, and the second argument is an array of colors that define the gradient.

.Column(column =>
{
    column.Spacing(25);

    column.Item()
        .Border(5)
        .BorderLinearGradient(0, [Colors.Red.Darken1, Colors.Blue.Darken1])
        .BorderAlignmentInside()
        .Padding(25)
        .Text("Horizontal gradient");

    column.Item()
        .Border(10)
        .BorderLinearGradient(45, [Colors.Green.Darken1, Colors.LightGreen.Darken1, Colors.Yellow.Darken1])
        .BorderAlignmentInside()
        .Padding(25)
        .Text("Diagonal gradient");

    column.Item()
        .Border(10)
        .BorderLinearGradient(90, [Colors.Yellow.Darken1, Colors.Amber.Darken1, Colors.Orange.Darken1])
        .CornerRadius(20)
        .Padding(25)
        .Text("Vertical gradient");
});

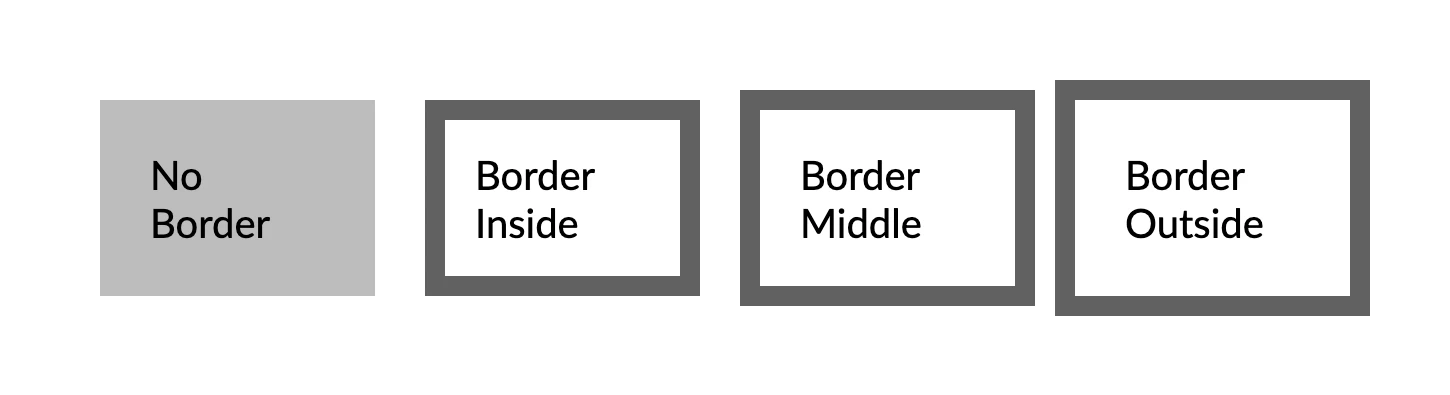

Alignment

You can control the alignment of the border relative to the container's boundaries using the following methods:

Method	Description
BorderAlignmentOutside	Aligns the container's border to the outer edge of the element.
BorderAlignmentMiddle	Aligns the border in the middle of the specified container boundaries.
BorderAlignmentInside	Aligns the border to the inside of the container.

By default, the border is aligned to the middle of the container boundaries.

However, if the border has rounded corners, the alignment is set to inside by default.

.Row(row =>
{
    row.Spacing(25);

    row.RelativeItem()
        .Background(Colors.Grey.Lighten1)
        .Padding(25)
        .Text("No Border");

    row.RelativeItem()
        .Border(10, Colors.Grey.Darken2)
        .BorderAlignmentInside()
        .Padding(25)
        .Text("Border Inside");

    row.RelativeItem()
        .Border(10, Colors.Grey.Darken2)
        .BorderAlignmentMiddle()
        .Padding(25)
        .Text("Border Middle");

    row.RelativeItem()
        .Border(10, Colors.Grey.Darken2)
        .BorderAlignmentOutside()
        .Padding(25)
        .Text("Border Outside");
});

Examples

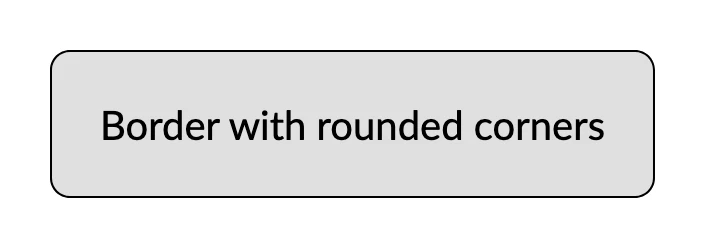

Rounded corners

Borders support rounded corners, which can be applied using the CornerRadius method.

TIP

Read more about rounded corners.

container
    .CornerRadius(10)
    .Border(1, Colors.Black)
    .Background(Colors.Grey.Lighten2)
    .Padding(25)
    .Text("Border with rounded corners");

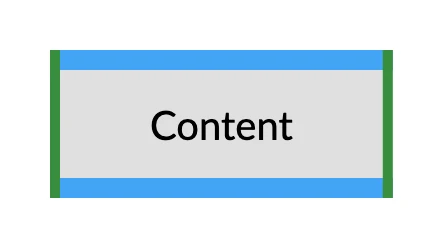

Multiple borders

It is possible to apply multiple borders to the same content by separating each border instance with the Container method.

container
    .BorderVertical(5)
    .BorderColor(Colors.Green.Darken2)
    .BorderAlignmentInside()

    .Container()

    .BorderHorizontal( 10)
    .BorderColor(Colors.Blue.Lighten1)
    .BorderAlignmentInside()

    .Background(Colors.Grey.Lighten2)
    .PaddingVertical(25)
    .PaddingHorizontal(50)
    .Text("Content");

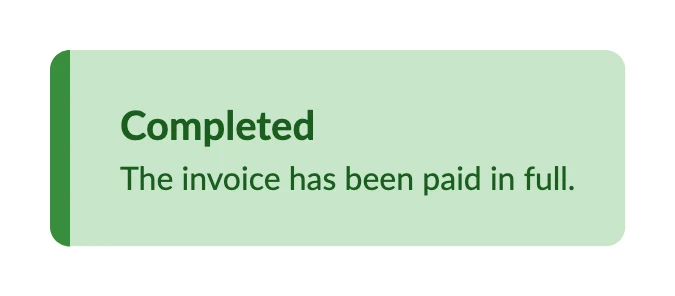

Advanced style

You can create advanced styles by combining borders with other properties, such as background color, padding, and text styles.

container
    .CornerRadius(10)
    .BorderLeft(10)
    .BorderAlignmentInside()
    .BorderColor(Colors.Green.Darken2)
    .Background(Colors.Green.Lighten4)
    .Padding(25)
    .PaddingLeft(10)
    .DefaultTextStyle(x => x.FontColor(Colors.Green.Darken4))
    .Column(column =>
    {
        column.Item().Text("Completed").Bold();
        column.Item().Height(5);
        column.Item().Text("The invoice has been paid in full.").FontSize(16);
    });
